Date Picker

Date Pickers allow users to select a Date and Time from a pop up Calendar.

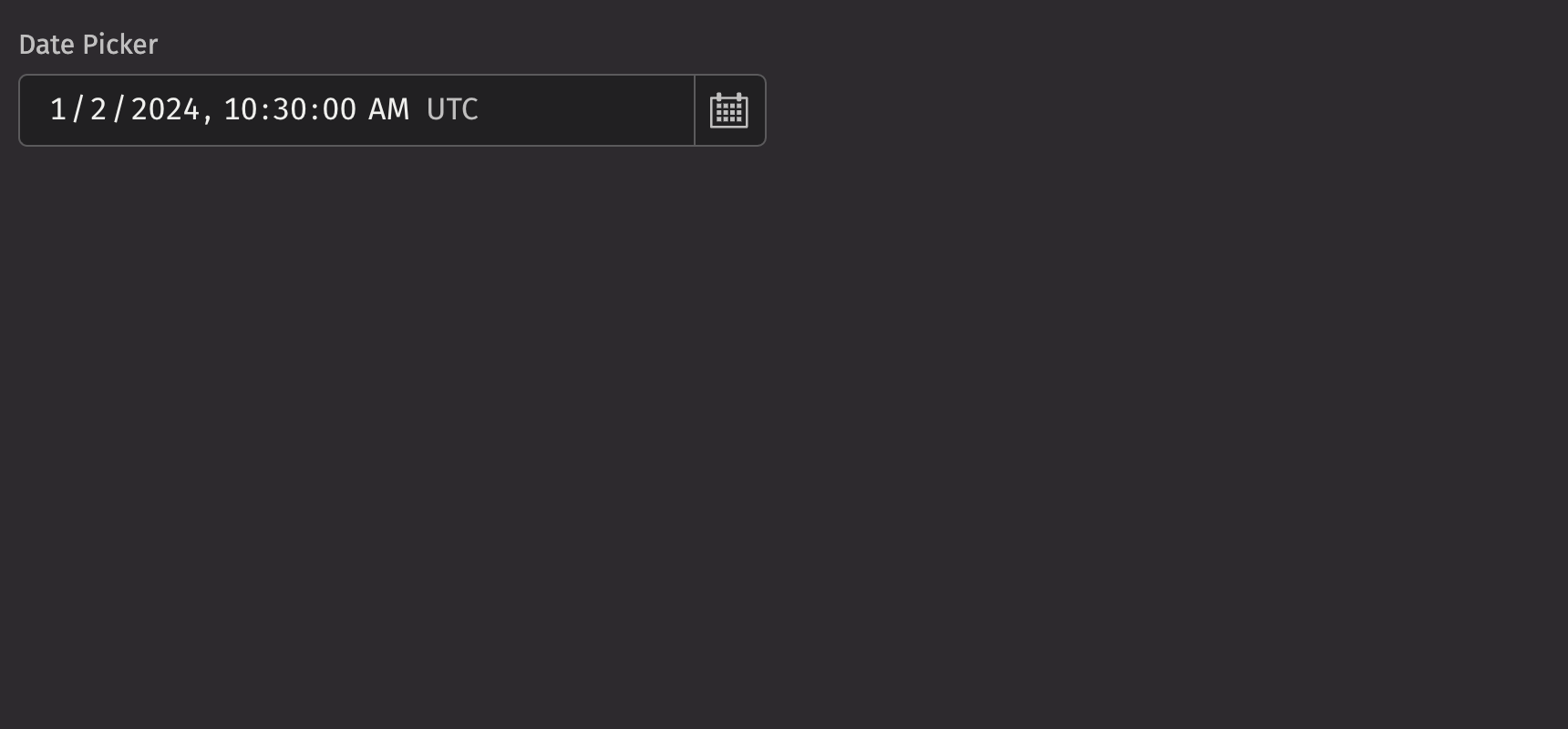

Example

from deephaven import ui

dp = ui.date_picker(
    label="Date Picker",
    default_value="2024-01-02T10:30:00 UTC",
    on_change=print,
)

Date types

The date picker accepts the following date types as inputs:
\\ None, LocalDate, ZoneDateTime, Instant, int, str, datetime.datetime, numpy.datetime64, pandas.Timestamp

The input will be converted to one of three Java date types:

1. LocalDate: A LocalDate is a date without a time zone in the ISO-8601 system, such as “2007-12-03” or “2057-01-28”. This will create a date picker with a granularity of days.
2. Instant: An Instant represents an unambiguous specific point on the timeline, such as 2021-04-12T14:13:07 UTC. This will create a date picker with a granularity of seconds in UTC. The time zone will be rendered as the time zone in user settings.
3. ZonedDateTime: A ZonedDateTime represents an unambiguous specific point on the timeline with an associated time zone, such as 2021-04-12T14:13:07 America/New_York. This will create a date picker with a granularity of seconds in the specified time zone. The time zone will be rendered as the specified time zone.

The input is coverted according to the following rules:

1. If the input is one of the three Java date types, use that type.
2. A date string such as “2007-12-03” will parse to a LocalDate
3. A string with a date, time, and timezone such as “2021-04-12T14:13:07 America/New_York” will parse to a ZonedDateTime
4. All other types will attempt to convert in this order: Instant, ZonedDateTime, LocalDate

The format of the date picker and the type of the value passed to the on_change handler is determined by the type of the following props in order of precedence:

1. value
2. default_value
3. placeholder_value

If none of these are provided, the on_change handler will be passed an Instant.

Controlled mode with value

Setting the value prop will put the date_picker in controlled mode. Selecting a new date will call the on_change callback. Then value must be updated programatically to render the new value. This can be done using the use_state hook.

from deephaven import ui
from deephaven.time import to_j_local_date, dh_today, to_j_instant, to_j_zdt

zoned_date_time = to_j_zdt("1995-03-22T11:11:11.23142 America/New_York")
instant = to_j_instant("2022-01-01T00:00:00 ET")
local_date = to_j_local_date(dh_today())


@ui.component
def date_picker_test(value):
    date, set_date = ui.use_state(value)
    return [ui.date_picker(on_change=set_date, value=date), ui.text(str(date))]


zoned_date_picker = date_picker_test(zoned_date_time)
instant_date_picker = date_picker_test(instant)
local_date_picker = date_picker_test(local_date)

Uncontrolled mode with default_value

If the value prop is omitted, the date_picker will be in uncontrolled mode. It will store its state internally and automatically update when a new date is selected. In this mode, setting the default_value prop will determine the initial value displayed by the date_picker.

from deephaven.time import dh_now
from deephaven import ui

dp = ui.date_picker(
    label="Date Picker",
    default_value=dh_now(),
    on_change=print,
)

Uncontrolled mode with placeholder_value

If both value and default_value are omitted, the date_picker will be in uncontrolled mode displaying no date selected. When opened, the date picker will suggest the date from the placeholder_value prop. Omitting placeholder_value will default it to today at the current time on the server machine time zone.

from deephaven import ui

dp1 = ui.date_picker(
    label="Date Picker",
    placeholder_value="2022-10-01T08:30:00 ET",
    on_change=print,
)

dp2 = ui.date_picker(
    label="Date Picker",
    on_change=print,
)

Events

Date Pickers accept a value to display and can trigger actions based on events such as setting state when changed. See the API Reference for a full list of available events.

Variants

Date Pickers can have different variants to indicate their purpose.

from deephaven import ui


@ui.component
def date_picker_variants():
    return [
        ui.date_picker(description="description"),
        ui.date_picker(error_message="error", validation_state="valid"),
        ui.date_picker(error_message="error", validation_state="invalid"),
        ui.date_picker(min_value="2024-01-01", max_value="2024-01-05"),
        ui.date_picker(value="2024-07-27T16:10:10 America/New_York", hour_cycle=24),
        ui.date_picker(granularity="YEAR"),
        ui.date_picker(granularity="MONTH"),
        ui.date_picker(granularity="DAY"),
        ui.date_picker(granularity="HOUR"),
        ui.date_picker(granularity="MINUTE"),
        ui.date_picker(granularity="SECOND"),
    ]


date_picker_variants_example = date_picker_variants()

Time table filtering

Date Pickers can be used to filter tables with time columns.

from deephaven.time import dh_now
from deephaven import time_table, ui


@ui.component
def date_table_filter(table, start_date, end_date, time_col="Timestamp"):
    after_date, set_after_date = ui.use_state(start_date)
    before_date, set_before_date = ui.use_state(end_date)
    return [
        ui.date_picker(label="Start Date", value=after_date, on_change=set_after_date),
        ui.date_picker(label="End Date", value=before_date, on_change=set_before_date),
        table.where(f"{time_col} >= after_date  && {time_col} < before_date"),
    ]


SECONDS_IN_DAY = 86400
today = dh_now()
_table = time_table("PT1s").update_view(
    ["Timestamp=today.plusSeconds(SECONDS_IN_DAY*i)", "Row=i"]
)
date_filter = date_table_filter(_table, today, today.plusSeconds(SECONDS_IN_DAY * 10))

API Reference

A date picker allows the user to select a date.

Returns: Element The date picker element.
