Time field

Time fields allow users to input a time using a text field.

Example

from deephaven import ui

my_time_field_basic = ui.time_field(label="Time field")

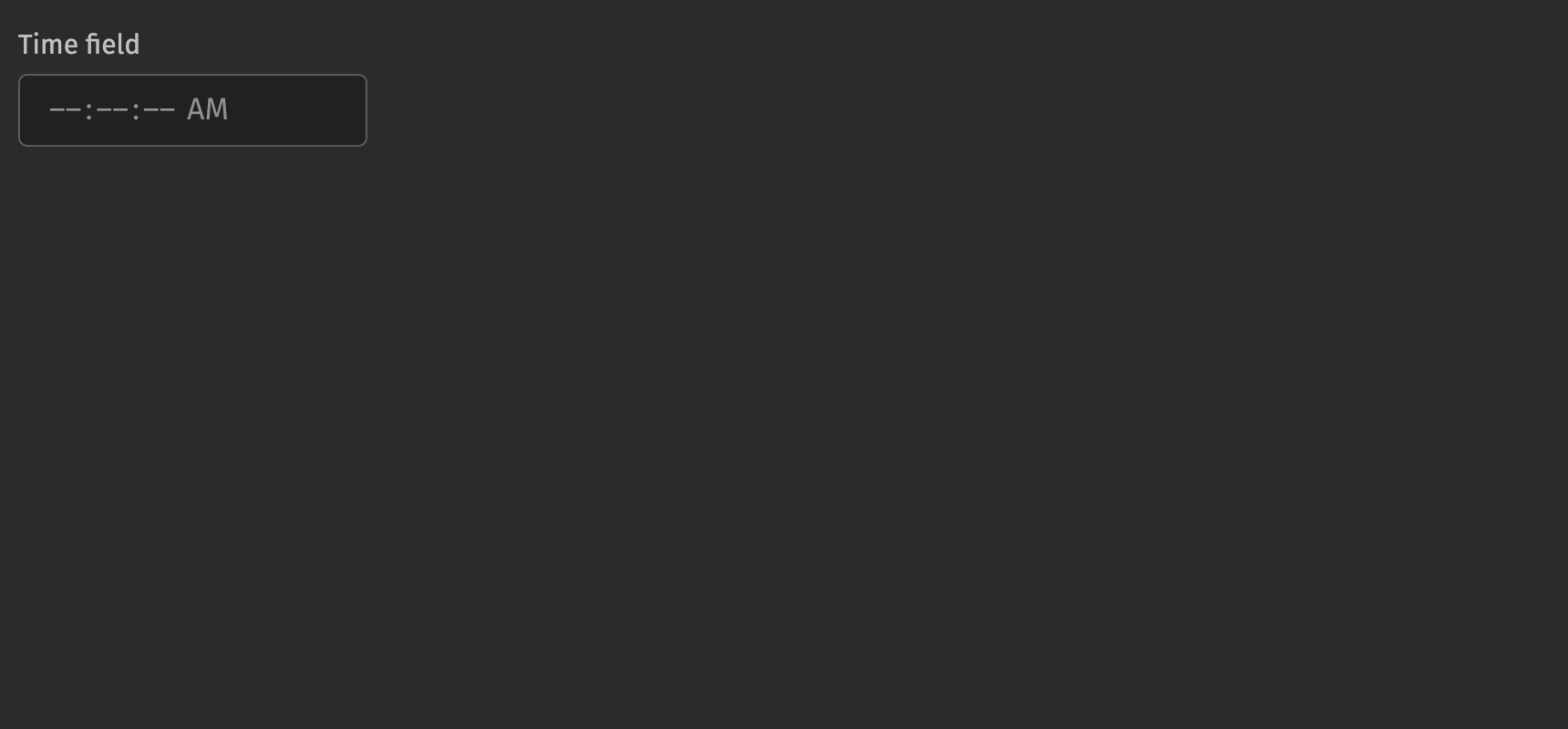

Time Field Basic Example

Time types

A time field can be used to input a time.

The time field accepts the following time types as inputs:

None
LocaTime
ZonedDateTime
Instant
int
str
datetime.datetime
numpy.datetime64
pandas.Timestamp

The input will be converted to one of three Java time types:

LocalTime: A LocalTime is a time without a time zone in the ISO-8601 system, such as “10:30:45” or “16:10:00”. This will create a time field with a granularity of seconds.
Instant: An Instant represents an unambiguous specific point on the timeline, such as 2021-04-12T14:13:07 UTC. This will create a time field with a granularity of seconds in UTC. The time zone will be rendered as the time zone in user settings.
ZonedDateTime: A ZonedDateTime represents an unambiguous specific point on the timeline with an associated time zone, such as 2021-04-12T14:13:07 America/New_York. This will create a time field with a granularity of seconds in the specified time zone. The time zone will be rendered as the specified time zone.
If the input is one of the three Java time types, use that type.
A time string such as “10:30:45” will parse to a LocaTime.
A string with a date, time, and timezone such as “2021-04-12T14:13:07 America/New_York” will parse to a ZonedDateTime.
All other types will attempt to convert in this order: LocaTime, Instant, ZonedDateTime.

The format of the time field and the type of the value passed to the on_change handler is determined by the type of the following props in order of precedence:

value
default_value
placeholder_value

If none of these are provided, the on_change handler passes a range of LocalTime.

from deephaven import ui
from deephaven.time import to_j_local_time, dh_now, to_j_instant, to_j_zdt

zoned_date_time = to_j_zdt("1995-03-22T11:11:11.23142 America/New_York")
instant = to_j_instant("2022-01-01T00:00:00 ET")
local_time = to_j_local_time("12:30:45")


@ui.component
def time_field_test(value):
    time, set_time = ui.use_state(value)
    return ui.time_field(on_change=set_time, value=time)


zoned_time_field = time_field_test(zoned_date_time)
instant_time_field = time_field_test(instant)
local_time_field = time_field_test(local_time)

Value

A time field displays a placeholder by default. An initial, uncontrolled value can be provided to the time field using the defaultValue prop. Alternatively, a controlled value can be provided using the value prop.

from deephaven import ui


@ui.component
def example():
    value, set_value = ui.use_state("11:45")
    return ui.flex(
        ui.time_field(
            label="Time field (uncontrolled)",
            default_value="11:45",
        ),
        ui.time_field(
            label="Time field (controlled)", value=value, on_change=set_value
        ),
        gap="size-150",
        wrap=True,
    )


my_example = example()

Time zones

Time field is time zone aware when ZonedTimeTime or Instant objects are provided as the value. In this case, the time zone abbreviation is displayed, and time zone concerns such as daylight saving time are taken into account when the value is manipulated.

In most cases, your data will come from and be sent to a server as an ISO 8601 formatted string.

For ZonedTimeTime objects, the time field displays the specified time zone.
For Instant objects, the time field displays the time zone from the user settings.

from deephaven import ui
from deephaven.time import to_j_instant

my_zoned_time_time = ui.time_field(
    label="Time field",
    default_value="2022-11-07T00:45 America/Los_Angeles",
)

my_instant = ui.time_field(
    label="Time field",
    default_value=to_j_instant("2022-11-07T00:45Z"),
)

Granularity

The granularity prop allows you to control the smallest unit displayed by a time field. By default, values are displayed with “SECOND” granularity.

In addition, when a value with a time is provided but you wish to display only the time, you can set the granularity to “DAY”. This has no effect on the actual value (it still has a time component), only on what fields are displayed. In the following example, two time fields are synchronized with the same value but display different granularities.

from deephaven import ui


@ui.component
def granularity_example():
    value, set_value = ui.use_state("2021-04-07T18:45:22 UTC")
    return ui.flex(
        ui.time_field(
            label="Time field and time field",
            granularity="SECOND",
            value=value,
            on_change=set_value,
        ),
        ui.time_field(
            label="Time field", granularity="HOUR", value=value, on_change=set_value
        ),
        gap="size-150",
        wrap=True,
    )


my_granularity_example = granularity_example()

HTML forms

The time field supports the name prop for integration with HTML forms. The value will be submitted to the server as an ISO 8601 formatted string, e.g., “08:45:00.”

from deephaven import ui

my_time_field_forms = ui.form(
    ui.time_field(label="Meeting time", name="meetingTime"),
    ui.button("Submit", type="submit"),
    on_submit=print,
)

Labeling

A visual label should be provided for the time field using the label prop. If the time field is required, the is_required and necessity_indicator props can be used to show a required state.

from deephaven import ui

my_time_field_labeling = ui.flex(
    ui.time_field(label="Time field"),
    ui.time_field(label="Time field", is_required=True, necessity_indicator="icon"),
    ui.time_field(label="Time field", is_required=True, necessity_indicator="label"),
    ui.time_field(label="Time field", necessity_indicator="label"),
)

Events

Time fields support selection through mouse, keyboard, and touch inputs via the on_change prop, which receives the value as an argument.

from deephaven import ui


@ui.component
def event_example():
    value, set_value = ui.use_state("11:45")
    return ui.time_field(
        label="Time field (controlled)", value=value, on_change=set_value
    )


my_event_example = event_example()

Validation

The is_required prop ensures that the user selects a time field. The related validation_behaviour prop allows the user to specify aria or native verification.

When the prop is set to “native”, the validation errors block form submission and are displayed as help text automatically.

from deephaven import ui


@ui.component
def time_field_validation_behaviour_example():
    return ui.form(
        ui.time_field(
            validation_behavior="native",
            is_required=True,
        )
    )


my_time_field_validation_behaviour_example = time_field_validation_behaviour_example()

Minimum and maximum values

The min_value and max_value props can also be used to ensure the value is within a specific field. Time field also validates that the end time is after the start time.

from deephaven import ui

my_time_field_basic = ui.time_field(
    label="Time field",
    min_value="11:00",
    default_value="11:45",
)

Label position

By default, the position of a time field’s label is above the time field, but it can be moved to the side using the label_position prop.

from deephaven import ui


@ui.component
def time_field_label_position_examples():
    return [
        ui.time_field(
            label="Test Label",
        ),
        ui.time_field(
            label="Test Label",
            label_position="side",
        ),
    ]


my_time_field_label_position_examples = time_field_label_position_examples()

Quiet state

The is_quiet prop makes a time field “quiet”. This can be useful when its corresponding styling should not distract users from surrounding content.

from deephaven import ui


my_time_field_is_quiet_example = ui.time_field(
    is_quiet=True,
)

Disabled state

The is_disabled prop disables the time field to prevent user interaction. This is useful when the time field should be visible but not available for selection.

from deephaven import ui


my_time_field_is_disabled_example = ui.time_field(
    is_disabled=True,
)

Read only

The is_read_only prop makes the time field’s value immutable. The time field remains focusable, unlike when is_disabled is used.

from deephaven import ui


my_time_field_is_read_only_example = ui.time_field(
    is_read_only=True,
)

Help text

A time field can have both a description and an error_message. Use the error message to offer specific guidance on how to correct the input.

The validation_state prop can be used to set whether the current time field state is valid or invalid.

from deephaven import ui


@ui.component
def time_field_help_text_examples():
    return [
        ui.time_field(
            label="Sample Label",
            description="Enter a time field.",
        ),
        ui.time_field(
            label="Sample Label",
            validation_state="valid",
            error_message="Sample invalid error message.",
        ),
        ui.time_field(
            label="Sample Label",
            validation_state="invalid",
            error_message="Sample invalid error message.",
        ),
    ]


my_time_field_help_text_examples = time_field_help_text_examples()

Contextual help

Using the contextual_help prop, a ui.contextual_help can be placed next to the label to provide additional information about the time field.

from deephaven import ui


time_field_contextual_help_example = ui.time_field(
    label="Sample Label",
    contextual_help=ui.contextual_help(ui.heading("Content tips")),
)

Custom width

The width prop adjusts the width of a time field, and the max_width prop enforces a maximum width.

from deephaven import ui


@ui.component
def time_field_width_examples():
    return [
        ui.time_field(
            width="size-3600",
        ),
        ui.time_field(
            width="size-3600",
            max_width="100%",
        ),
    ]


my_time_field_width_examples = time_field_width_examples()

Hide time zone

The time zone can be hidden using the hide_time_zone option.

from deephaven import ui

my_hide_time_zone_example = ui.time_field(
    label="Time field",
    default_value="2022-11-07T00:45 America/Los_Angeles",
    hide_time_zone=True,
)

Hour cycle

By default, time field displays times in either a 12 or 24 hour format depending on the user’s locale. However, this can be overridden using the hour_cycle prop.

from deephaven import ui


time_field_hour_cycle_example = ui.time_field(label="Time field", hour_cycle=24)

Time table filtering

Time fields can be used to filter tables with time columns.

from deephaven.time import dh_now
from deephaven import time_table, ui


@ui.component
def time_table_filter(table, start_time, end_time, time_col="Timestamp"):
    after_time, set_after_time = ui.use_state(start_time)
    before_time, set_before_time = ui.use_state(end_time)
    return [
        ui.time_field(
            label="Start Time",
            value=after_time,
            on_change=set_after_time,
            hour_cycle=24,
        ),
        ui.time_field(
            label="End Time",
            value=before_time,
            on_change=set_before_time,
            hour_cycle=24,
        ),
        table.where(f"{time_col} >= after_time  && {time_col} < before_time"),
    ]


SECONDS_IN_HOUR = 3600
today = dh_now()
_table = time_table("PT1s").update_view(
    ["Timestamp=today.plusSeconds(SECONDS_IN_HOUR*i)", "Row=i"]
)
time_filter = time_table_filter(_table, today, today.plusSeconds(SECONDS_IN_HOUR * 10))

API Reference

A time field allows the user to select a time.

Returns: Element The time field element.

Parameters	Type	Default	Description
placeholder_value	DType \| None \| int \| str \| time \| datetime \| datetime64 \| Timestamp	None	A placeholder time that influences the format of the placeholder shown when no value is selected. Defaults to 12:00 AM or 00:00 depending on the hour cycle.
value	DType \| None \| int \| str \| time \| datetime \| datetime64 \| Timestamp \| UndefinedType	<deephaven.ui.types.types.UndefinedType object>	The current value (controlled).
default_value	DType \| None \| int \| str \| time \| datetime \| datetime64 \| Timestamp \| UndefinedType	<deephaven.ui.types.types.UndefinedType object>	The default value (uncontrolled).
min_value	DType \| None \| int \| str \| time \| datetime \| datetime64 \| Timestamp	None	The minimum allowed time that a user may select.
max_value	DType \| None \| int \| str \| time \| datetime \| datetime64 \| Timestamp	None	The maximum allowed time that a user may select.
granularity	Literal['HOUR', 'MINUTE', 'SECOND'] \| None	'SECOND'	Determines the smallest unit that is displayed in the time field. By default, this is "SECOND".
hour_cycle	Literal[12, 24] \| None	None	Whether to display the time in 12 or 24 hour format. By default, this is determined by the user's locale.
hide_time_zone	bool	False	Whether to hide the time zone abbreviation.
should_force_leading_zeros	bool \| None	None	Whether to force leading zeros in the time field.
is_disabled	bool \| None	None	Whether the input is disabled.
is_read_only	bool \| None	None	Whether the input can be selected but not changed by the user.
is_required	bool \| None	None	Whether user input is required on the input before form submission.
validation_behavior	Literal['aria', 'native'] \| None	None	Whether to use native HTML form validation to prevent form submission when the value is missing or invalid, or mark the field as required or invalid via ARIA.
auto_focus	bool \| None	None	Whether the element should receive focus on render.
label	None \| bool \| int \| str \| Element \| List[NodeType]	None	The content to display as the label.
description	Element \| None	None	A description for the field. Provides a hint such as specific requirements for what to choose.
error_message	Element \| None	None	An error message for the field.
name	str \| None	None	The name of the input element, used when submitting an HTML form.
is_quiet	bool \| None	None	Whether the time field should be displayed with a quiet style.
label_position	Literal['top', 'side'] \| None	None	The label's overall position relative to the element it is labeling.
label_align	Literal['start', 'end'] \| None	None	The label's horizontal alignment relative to the element it is labeling.
necessity_indicator	Literal['icon', 'label'] \| None	None	Whether the required state should be shown as an icon or text.
contextual_help	Element \| None	None	A ContextualHelp element to place next to the label.
validation_state	Literal['valid', 'invalid'] \| None	None	Whether the input should display its "valid" or "invalid" visual styling.
key	str \| None	None	A unique identifier used by React to render elements in a list.
