Color formatting

formatColumns

Color formatting can be applied to the contents of an entire column using the formatColumns method:

.formatColumns("columnName=<colorObject>")

The columnName is the name of the column to format, and <colorObject> is any of the valid color objects available in Deephaven.

The following query will apply the color VIVID_YELLOW to all cells in the Sym column:

t = db.t("LearnDeephaven","StockTrades").where("Date=`2017-08-21`")

t2 = t.formatColumns("Sym=VIVID_YELLOW")

t = db.t("LearnDeephaven","StockTrades").where("Date=`2017-08-21`")

t2 = t.formatColumns("Sym=VIVID_YELLOW")

Conditional Formatting

Columns

Deephaven provides methods for applying conditional formatting to only certain rows and/or columns.

The following method formats cells in the named column when a specified condition exists:

.formatColumnWhere("columnName", "<condition>", "colorValue")

The following query applies the color DEEP_GREEN to the Sym column when the value in the Size column of the same row is greater than 25.

t3 = t.formatColumnWhere("Sym", "Size>25", "DEEP_GREEN")

t3=t.formatColumnWhere("Sym", "Size>25", "DEEP_GREEN")

Ternary statements can also be used to color cells based on conditional statements. The following colors cells in the Sym column BRIGHT_GREEN if the value in the Diff column is positive, and BRIGHT_RED if otherwise:

t6 =  db.t("LearnDeephaven","StockQuotes")
     .where("Date=`2017-08-22`")
     .update("Diff = Ask-Bid")

t7 = t6.formatColumns("Sym = (Diff > 0) ? BRIGHT_GREEN : BRIGHT_RED")

t6 =  db.t("LearnDeephaven","StockQuotes")\
     .where("Date=`2017-08-22`")\
     .update("Diff = Ask-Bid")

t7 = t6.formatColumns("Sym = (Diff > 0) ? BRIGHT_GREEN : BRIGHT_RED")

Rows

The formatRowWhere method formats entire rows when a specified condition exists:

.formatRowWhere("<condition>", "<colorValue>")

The following query applies the color PALE_BLUE to any row when the value in the Last column is less than 100.

t4 = db.t("LearnDeephaven","StockTrades")
     .where("Date=`2017-08-21`")
     .headBy(2, "Sym")

t5 = t4.formatRowWhere("Last<100", "PALE_BLUE")

t4 = db.t("LearnDeephaven","StockTrades")\
     .where("Date=`2017-08-21`")\
     .headBy(2, "Sym")

t5 = t4.formatRowWhere("Last<100", "PALE_BLUE")

The following colors the entire row BRIGHT_YELLOW if the Sym column is equal to the string "AAPL":

t8 = t4.formatRowWhere("Sym=`AAPL`", "BRIGHT_YELLOW")

t8 = t4.formatRowWhere("Sym=`AAPL`", "BRIGHT_YELLOW")

The following colors all the cells in every other row VIVID_PURPLE:

t8 = t4.formatRowWhere("i % 2 == 0", "VIVID_PURPLE")

t8 = t4.formatRowWhere("i % 2 == 0", "VIVID_PURPLE")

Combinations

Color methods can also be combined in a table.

The following query colors all cells in every other row VIVID_PURPLE, and colors the cells in column C BRIGHT_YELLOW in every odd row.

t9 = t4.formatRowWhere("i % 2 == 0", "VIVID_PURPLE").formatColumnWhere("Sym", "i % 2 == 1", "BRIGHT_YELLOW")

t9 = t4.formatRowWhere("i % 2 == 0", "VIVID_PURPLE").formatColumnWhere("Sym", "i % 2 == 1", "BRIGHT_YELLOW")

Assigning Colors to Backgrounds and Foregrounds

The field of a cell is the background. The text/numbers showing in the cell is the foreground. Color objects can then be used with the following methods to assign individual color values or combinations to the background and/or foreground:

• bg() or background() - These methods set the background to a specific color, but do not apply any foreground color.
• fg() or foreground() - These methods set the foreground to a specific color, but do not apply any background color.
• bgfg() or backgroundForeground() - These methods set both the background and foreground to specific values.
• bgfga() or backgroundForegroundAuto() - These methods set the background to a specific color. Deephaven automatically chooses a contrasting foreground color.
• fgo() or foregroundOverride() - These methods are similar to fg() or foreground(). However, when either of these methods are used, the color selected will stay applied instead of the highlight color that is automatically assigned when the user highlights the cell or group of cells in the Deephaven console.
• bgo() or backgroundOverride() - These methods are similar to bg() or background(). However, when either of these methods are used, the color selected will stay applied instead of the highlight color that is automatically assigned when the user highlights the cell or group of cells in the Deephaven console.

The following query generates a table with an orange background using RGB values:

t = db.t("LearnDeephaven","StockTrades").where("Date=`2017-08-21`")

t10 = t.formatRowWhere("true","bg(colorRGB(255,93,0))")

t = db.t("LearnDeephaven","StockTrades").where("Date=`2017-08-21`")

t10 = t.formatRowWhere("true","bg(colorRGB(255,93,0))")

The following query generates a table with a purple foreground using RGB values:

t11 = t.formatRowWhere("true","fg(colorRGB(102,0,204))")

t11 = t.formatRowWhere("true","fg(colorRGB(102,0,204))")

The following query will color the Sym column with a hot pink background and a yellow foreground.

t12 = t.formatColumns("Sym = bgfg(colorRGB(255,105,80),colorRGB(255,255,0))")

t12 = t.formatColumns("Sym = bgfg(colorRGB(255,105,80),colorRGB(255,255,0))")

The following query generates a table with a navy blue background and automatically selects a contrasting foreground.

t13 = t.formatColumns("* = bgfga(colorRGB(0,0,128))")

t13 = t.formatColumns("* = bgfga(colorRGB(0,0,128))")

Heat Maps

Color-based formatting can also be used to create heat maps in Deephaven tables:

heatmap(<colName>, <minimumValue>, <maximumValue>, <minimumBackgroundColor>, <maximumBackgroundColor>)

The following query will apply color to the Price column as follows:

• When the value is less than or equal to 10.00, BRIGHT_GREEN will be used,
• When the value is greater than or equal to 100.00, BRIGHT_RED will be used, and
• An automatically interpolated color proportionally between BRIGHT_GREEN and BRIGHT_RED will be used for all other values between 10 and 100.

t4 = db.t("LearnDeephaven","StockTrades")
     .where("Date=`2017-08-21`")
     .headBy(2, "Sym")

t14 = t4.formatColumns("Last = heatmap(Last, 10.00, 100.00, BRIGHT_GREEN, BRIGHT_RED)")

t4 = db.t("LearnDeephaven","StockTrades")\
     .where("Date=`2017-08-21`")\
     .headBy(2, "Sym")

t14 = t4.formatColumns("Last = heatmap(Last, 10.00, 100.00, BRIGHT_GREEN, BRIGHT_RED)")

Options are also available for heatmapFg() and heatmapForeground(). When either of these methods is used, the heatmap color pair listed in the argument is applied only to the foreground.

Distinct Coloration

Colors can be applied to collections of values to create distinct and unique coloration for better visualization. Applying specific colors individually to each distinct value could be accomplished through iterative formatColumns methods. However, Deephaven offers a more convenient process using the DistinctFormatter method.

This object works by mapping input values to a list of predetermined and unique colors.

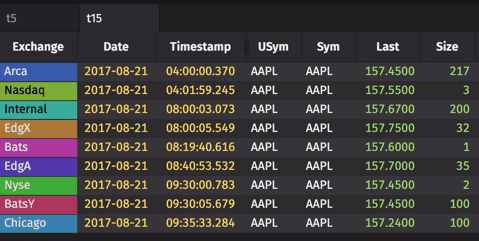

For example, the following query assigns unique colors to the values in the Exchange column.

import com.illumon.iris.db.util.DBColorUtilImpl.DistinctFormatter
t15 = db.t("LearnDeephaven","StockTrades")
     .where("Date=`2017-08-21`")
     .headBy(1, "Exchange")

colorMe = new DistinctFormatter();
t16 = t5.formatColumns("Exchange = colorMe.getColor(Exchange)")

from deephaven import DistinctFormatter
t15 = db.t("LearnDeephaven","StockTrades")\
     .where("Date=`2017-08-21`")\
     .headBy(1, "Exchange")


colorMe=DistinctFormatter()
t16 = t5.formatColumns("Exchange = colorMe.getColor(Exchange)")

Combining Numeric and Color Formatting

The methods used above can also be combined by chaining the arguments to the formatColumns methods.

t17 = db.t("LearnDeephaven", "StockQuotes").where("Date=`2017-08-25`").update("Diff = Bid-Ask").headBy(1, "USym")

t18 = t17.sort("Diff").formatColumns("Diff=Decimal(`###.00`)", "Diff=heatmap(Diff, -1, 1, VIVID_RED, VIVID_GREEN)")

t17 = db.t("LearnDeephaven", "StockQuotes").where("Date=`2017-08-25`").update("Diff = Bid-Ask").headBy(1, "USym")

t18 = t17.sort("Diff").formatColumns("Diff=Decimal(`###.00`)", "Diff=heatmap(Diff, -1, 1, VIVID_RED, VIVID_GREEN)")

This query will:

• sort the table in descending order based on the values in the Diff column ,
• format the values in the Diff column rounded to two decimal places, and
• apply a color heat map to the Diff column ranging from vivid red to vivid green as the values of the column move from most negative to most positive.

Appendix: Assigning Colors

Colors can be assigned in Deephaven tables or plots using strings or by using color objects.

Named Color Values

There are 280 predefined color values available in Deephaven.

These predefined colors are referred to by their names, which must be typed in capital letters.

Because these values are considered strings, they must be enclosed in quotes. If the named color values are to be used within another string (i.e., a string within a string), the name must be enclosed in backticks.

Examples

.pointColor("SKYBLUE")

.formatColumns("Date=`SKYBLUE`")

HEX (Hexadecimal)

Hexadecimal values are specified with three values that correspond to RRGGBB. Each value [RR (red), GG (green) and BB (blue)] are hexadecimal integers between 00 and FF, and they specify the intensity of the color. All Hex values are preceded with a pound sign, e.g., #0099FF.

Because these values are considered strings, they must be enclosed in quotes. If the HEX color values are to be used within another string (i.e., a string within a string), the name must be enclosed in backticks.

Examples

.pointColor("#87CEFA")

.formatColumns("Date=`#87CEFA`")

Applying Color with Color Objects

Color objects can be created using any of the color models listed below.

• Predefined Color Variables
• String Values
• RGB (Red, Green, Blue)
• RGBA (Red, Green, Blue, Alpha)
• HSL (Hue, Saturation, Lightness)
• HSLA (Hue, Saturation, Lightness, Alpha)

Predefined Color Variables

Deephaven offers a set of predefined color variables that can be used as color objects in your queries:

COLOR_<NAMEDCOLOR>

The value used for <NAMEDCOLOR> can be any of the named color values described above. Examples include: COLOR_RED, COLOR_GREEN, COLOR_VIVID_PURPLE, etc. As with the named color values, the predefined color variables must be typed in capital letters.

Examples

.lineColor(COLOR_SKYBLUE)

.formatColumns("Date=COLOR_SKYBLUE")

String Values

Named color values and HEX color values can also be converted into color objects in Deephaven by enclosing their values (as strings) into the argument of the color method.

The syntax follows:

color(`<COLORNAME>`)

color(`#RRGGBB`)

Examples

.lineColor(color(`SKYBLUE`))

.lineColor(color(`#87CEFA`))

.formatColumns("Date=color(`SKYBLUE`)")

.formatColumns("Date=color(`#87CEFA`)")

RGB (Red, Green, Blue)

RGB values are represented numerically with comma-separated values for red, green and blue respectively, with each value expressed as integers in the range 0-255 or floats in the range 0-1.

RGB color values can be converted into color objects in Deephaven by enclosing their values into the argument of the colorRGB method.

The syntax follows:

colorRGB(int r, int g, int b)

colorRGB(float r, float g, float b)

Examples

.lineColor(colorRGB(135, 206, 250))

.formatColumns("Date=colorRGB(135, 206, 250)")

RGBA (Red, Green, Blue, Alpha)

The RGBA color model is based on RGB. However, RGBA provides an option for a fourth value to specify alpha (transparency). As with RGB, the numeric values can be specified using floats or ints. The numeric ranges for RGB remain the same. The alpha channel can range from 0 (fully transparent) to 255 (fully opaque) for ints, and 0.0 to 1.0 for floats.

RGBA color values can be converted into color objects in Deephaven by enclosing their values into the argument of the colorRGB method.

The syntax follows:

colorRGB(int r, int g, int b, int a)

colorRGB(float r, float g, float b, float a)

Examples

.lineColor(colorRGB(255,0,0,100))

.formatColumns("Date=colorRGB(135, 206, 250, 50)")

HSL (Hue, Saturation, Lightness)

HSL values are represented numerically with comma-separated values for hue, saturation and lightness respectively. Hue is the degree on the color wheel, and can range from 0 to 360. Saturation is the percentage of value. Lightness is also a percentage, with 0% being black, and 100% being white. The numeric values for HSL can only be specified using floats.

HSL color values can be converted into color objects in Deephaven by enclosing their values into the argument of the colorHSL method. The syntax follows:

colorHSL(float h, float s, float l)

Examples

.lineColor(colorHSL(0.56, 0.92, 1.75))

.formatColumns("Date=colorHSL(0.56f, 0.92f, 1.75f)")

HSLA (Hue, Saturation, Lightness, Alpha)

The HSLA color model is based on HSL. However, HSLA provides an option for a fourth value to specify alpha (transparency). As with HSL, the numeric values must be specified using floats. The numeric ranges for HSL remain the same. The alpha channel can range from 0.0 (fully transparent) to 1.0 (fully opaque).

HSLA color values can be converted into color objects in Deephaven by enclosing their values into the argument of the colorHSL method.

The syntax follows:

colorHSL(float h, float s, float l float a)

Examples

.lineColor(colorHSL(0.56, 0.92, 1.75, 0.75))

.formatColumns("Date=colorHSL(0.56f, 0.92f, 1.75f, 0.5f)")
