Data routing service configuration via YAML

Data is central to Deephaven. There are many ways to configure the storage, ingestion, and retrieval of the data. The Data Routing Service is a central API for managing the configuration of a Deephaven system. The YAML configuration file format centralizes the information governing the locations, servers, and services that determine how data is handled. Because the information is stored in one place, the entire configuration can be viewed at a glance. This also makes it easier to make changes and understand the implications.

Like most Deephaven configuration, this routing information is stored in etcd and accessed via the configuration service. See our Configuration guide for information about exporting and editing the data routing configuration.

YAML file format

The YAML data format is designed to be human-readable. However, there are some aspects that are not obvious to the unfamiliar reader. The following pointers will make the rest of this document easier to understand.

• YAML leans heavily on maps and lists.
• A string followed by a colon (e.g., filters:) indicates the name of a name-value pair (the value can be a complex type). This is used in "map" sections.
• A dash (e.g., - name) indicates an item in a list or array. In this structure, the item is often a map. However, the item can be any type, simple or complex. Maps are populated with key:value sets, and the values can be arbitrary complex types.
• Anchors are defined by &identifier, and they are global to the file. Anchors might refer to complex data.
• Aliases refer to existing anchors (e.g., *identifier).
• Aliased maps can be spliced in (e.g., <<: *DIS-default). In the context below, all the items defined by the map with anchor DIS-default are duplicated in the map containing the <<: directive.

The Data Routing Service needs certain data to create a system configuration. It looks for that data under defined sections in a single YAML document.

Data types

Only a few of the possible data types are used by Deephaven and mentioned in this document:

• List (or sequence) - consecutive items beginning with -.
• Map - set of "name: value" pairs
• Scalars - single values mainly integer, floating point, boolean, and string

The YAML parser will guess at the data type for a scalar, and it cannot be always correct. The main opportunity for confusion is with strings that can be interpreted as other data types. Any value can be clarified as a string by enclosing it in quotation marks (e.g., "8" puts the number in string format).

We will simply refer to scalars as values or their value types (e.g., string) from here on out.

Placeholder values

Any value of the form <env:TOKEN> or <prop:property_name> will be replaced by the value of the named environment variable or property. Note that this is not standard YAML, but rather a Deephaven extension to allow for customization in certain environments.

For example:

Sections

The Data Routing Configuration file contains a single YAML document with sections, which we define as important maps and lists directly under the root "config" map.

The document must contain this "config" map, which must have the following sections:

• storage
• logAggregatorServers
• tableDataServices

dataImportServers used to be required, but is now optional or may be empty. Configuration in this section can now be managed separately with the dhconfig dis command. See also Extract a DIS from the data routing configuration file for help extracting configurations from this section. The content and rules for this section are still valid for separately managed data import servers.

Optional sections may be included in the YAML file that define anchors and default values (e.g., "anchors"), and those that combine default data into one location (e.g., "default"). Each section is discussed below.

Anchors

Anchors can be defined and then referenced throughout the data routing configuration file. These can represent strings, numbers, lists, maps, and more. In this case, we use them to define names for machine roles and for port values. In a later section, they define the default set of properties in a DIS.

The syntax &identifer defines an anchor, which allows "identifier" to be referenced elsewhere in the document. This is often useful to concentrate default data in one place to avoid duplication. Note: because anchors are global, the names must be unique.

See the example "anchors" section below. This collection of anchors defines the layout of the cluster, defines default values for ports that were previously defined in properties files, and defines default values for DIS configurations that will be referenced later in the document (see Data Import Servers below for a detailed explanation of these values):

Note: Anchors can be defined anywhere in the YAML file. However, the anchors must be defined earlier in the file than where they are used. For example, the hosts and default ports could also be defined in their own sections (e.g., "hosts" and "defaultPorts") rather than consolidated into one section.

Storage

This required section defines locations where Deephaven data will be stored. This will include the default database root and any alternate locations used by additional data import servers.

For example:

The value of this section must be a list of maps containing:

• name: [String] - Other parts of the configuration will refer to a storage instance by this name.
• dbRoot: [String] - This refers to an existing directory.

Data Import Servers

This section supports Data Import Server (DIS) and Tailer processes.

The DIS process will load the configuration matching its process.name property (e.g., db_dis) . The configuration names can be set to match the process names in use. This can be overridden with property DataImportServer.routingConfigurationName.

The Tailer process uses this configuration section to determine where to send the data it tails. Note that a given table might have multiple DIS destinations.

The two consumers have slightly different needs, since the DIS is also a service provider, while the tailer is only a consumer.

The following example defines two data import servers. Note that the defaults defined in the previous section are imported into each map entry. Defaults defined by anchors and aliases do not work across files, and therefore do not apply to separately manged DIS configurations.

The value of this section must be a map. The keys of the map will be used as Data Import Server names. The set of valid characters for a DIS name is slightly different for those configured in the routing file versus those configured separately. Avoid special characters for simplicity. The value for each key is also a map:

• endpoint: [map] - This defines all the endpoints (host and ports) supported by the Data Import Server. endpoint attributes include:
  • serviceRegistry: [String] - (Optional) Valid values are none and registry. none is the default value and indicates a static configuration. registry indicates that the configured endpoints will be registered and retrieved at runtime.
  • host: [String] - This is required if the serviceRegistry value is none. The tailer will connect to this data import server on the given host and tailer port.
  • tailerPortDisabled: [boolean] - (Optional) If present and true, the DIS will not accept tailed data (or commands).
  • tableDataPortDisabled: [boolean] - (Optional) If present and true, the DIS will not start or register a table data service (TDS).
  • tailerPort: [int] - This indicates the port for tailing data. -1 implies tailerPortDisabled: true. Required unless tailing is disabled or serviceRegistry = registry.
  • tableDataPort: [int] - This indicates the port where the Table Data Service will be hosted. -1 implies tableDataPortDisabled: true. Required unless disabled or serviceRegistry = registry.
  • tableDataPortEnabled: [boolean] - Deprecated. Use tableDataPortDisabled where needed.
  • tailerPortEnabled: [boolean] - Deprecated. Use tailerPortDisabled where needed.
• throttleKbps: [int] - (Optional) If omitted or set to -1, then there is no throttling.
• storage: [String] - This must be the name of a storage instance defined in the storage section, or private. This Data Import Server will write data in the location specified by this storage instance. The special value private indicates that the DIS will determine where to store data via some other configuration and that the data will not be readable by any local table data service. When private storage is selected, an in-worker DIS must retrieve the DIS configuration with the com.illumon.iris.db.v2.routing.DataRoutingService.getDataImportServiceConfigWithStorage method instead of the com.illumon.iris.db.v2.routing.DataRoutingService.getDataImportServiceConfig method.
• userIntradayDirectoryName: [String] - (Optional) Intraday user data will be stored in this folder under the defined storage. If not specified, the default is "Users".
• filters: [filter definition] - (Optional) This filter determines the tables for which tailers will send data to this Data Import Server. filters is not allowed with claims for a given DIS entry.
• claims: [map or list of maps] - (Optional) Indicates that specific namespaces or tables are handled exclusively by this DIS, or failoverGroup if one is specified. claims is not allowed with filters for a given DIS entry.
• failoverGroup: [string] - (Optional) Indicates that this DIS is part of a failover group. The group is defined as all DISes with the same value for failoverGroup.
• tags: [list] - (Optional) Strings that are used to categorize this Table Data Service.
• description: - (Optional) Text description of this Table Data Service. This text is displayed in user interface contexts.
• properties: - (Optional) Map of properties to be applied to this DIS instance. See full details below.
• webServerParameters: [map] - (Optional) This defines an optional web server for internal status. Properties in this section are:
  • enabled: [boolean] - (Optional) If set, and true, then a webserver will be created.
  • port: [int] (Optional) This is required if the serviceRegistry value in endpoints is not registry and enabled is true. The webserver interface will be started on this port.
  • authenticationRequired: [boolean] - (Optional) Defaults to true.
  • sslRequired: [boolean] - (Optional) Defaults to true. If authenticationRequired is true, then sslRequired must also be true.

Failover groups

It is possible to configure Data Import Servers with some redundancy. A tailer will send data to all DISes whose filters accept that data. A second DIS accepting data provides data storage redundancy.

It is also possible to configure multiple DISes to serve the same data. All DISes that include the same value for failoverGroup will be treated as equivalent sources for matching data. All participating DISes must have identical filters. The table data service will request data from only one participating DIS at a time. If the current source becomes unavailable, the table data service (TDS) will send the request to another.

Note that this is equivalent in behavior to:

Properties

The properties value is a map of properties to be applied to this data import server instance.

Valid properties include:

• requestTimeoutMillis: int
• StringCacheHint.<various>

DataImportServers have string caches, which are configured with properties starting with DataImportServer.StringCacheHint:

• DataImportServer.StringCacheHint.tableNameAndColumnNameEquals_
• DataImportServer.StringCacheHint.columnNameEquals_
• DataImportServer.StringCacheHint.columnNameContains_
• DataImportServer.StringCacheHint.tableNameStartsWith_
• DataImportServer.StringCacheHint.default

These properties define the global default values, but they are augmented and overridden in any given data import server configuration by properties starting with StringCacheHint:

• StringCacheHint.tableNameAndColumnNameEquals_
• StringCacheHint.columnNameEquals_
• StringCacheHint.columnNameContains_
• StringCacheHint.tableNameStartsWith_
• StringCacheHint.default

Example:

Log Aggregator Servers

This section defines Log Aggregator Servers. Unlike the way a Tailer uses DIS entries, only one LAS will be selected for a given table location. This allows a section with a specific filter to override a following section with more general filters. The LAS process will load the configuration matching its process.name property. That can be overridden with property LogAggregatorService.routingConfigurationName.

The following example shows one service for user data (RTA) and a local service for everything else:

The value for this section must be a list, and should be an ordered list. The !!omap directive ensures that the datatype is an ordered list. Consumers of the Log Aggregator Service will send data to the first server in the list for which the filter matches.

Each item in the list is a map, where the key is taken to be the name of a Log Aggregator Server.

The value of each item within the map is a key-value pair:

• endpoint: [map] - This defines the endpoint (host and port) supported by the Log Aggregator Server that clients would connect to. endpoint attributes include:
  • serviceRegistry: [String] - (Optional) Valid values are none and registry. none is the default value and indicates a static configuration. registry indicates that the configured endpoint will be registered and retrieved at runtime.
  • host: [String] - Required unless serviceRegistry is registry. This is often localhost.
  • port: [int] - Required unless serviceRegistry is registry.
• filters: [filter definition] - (Optional) This filter defines whether data for a given table should be sent to this server.
• properties: - (Optional) Map of properties to be applied to this Log Aggregator instance. See below.

Properties

The properties value is a map of properties to be applied to this log aggregator instance.

Valid properties include:

• binaryLogTimeZone
• messagePool.minBufferSize
• messagePool.maxBufferSize
• messagePool.bucketSize
• BinaryLogQueueSink.pollTimeoutMs
• BinaryLogQueueSink.idleShutdownTimeoutMs
• BinaryLogQueueSink.queueSize

Table Data Services

This is the most important section and requires careful set-up.

This section supports both providers and consumers of the TableDataService (TDS) protocol. Providers include Data Import Servers, the Table Data Cache Proxy (TDCP), and the Local Table Data Service (LTDS). All Data Import Servers are implicitly TDS providers unless that function is disabled. The TDCP and LTDS load their TDS configurations from the TableDataService section by name, using the process.name property, or one of the optional overriding properties:

• TableDataCacheProxy.routingConfigurationName
• LocalTableDataServer.routingConfigurationName

Any TDS that will be used by a consumer process (query server, merge process, etc.) must have filters configured so that any table location will be provided by exactly one source, either because of filter exclusions or because of local availability of data.

A table location is composed of a namespace, tableName, internalPartition, and columnPartition. A TDS can be configured to provide specific column partition values (e.g., >= currentDate), and another TDS to provide locations for the other column partition values (e.g., < currentDate).

For example:

The value for this section must be a map. The key of each entry will be used as the name of the table data service.

The value of each item is also a map:

• endpoint: [map] - (Optional) This defines the endpoint of a remote table data service. endpoint attributes include:
  • serviceRegistry: [String] - (Optional) Valid values are none and registry. none is the default value and indicates a static configuration. registry indicates that the configured endpoint will be registered and retrieved at runtime.
  • host: [String] - Required unless serviceRegistry is registry. This is often localhost.
  • port: [int] - Required unless serviceRegistry is registry.
• storage: [String] - (Optional) Either storage or sources must be specified. If present, this must be the name of a defined storage instance. This is valid for a local table data service, or a local table data proxy.
• sources: [list] - (Optional) Either storage or sources must be specified. sources defines a list of other table data services that will be presented as a new table data service:
• name: [String or List] - A string value refers to a configured table data service, DIS, or failover group. A list indicates multiple configured table data services that are deemed to be equivalent. This can be used for redundancy or failover.
• filters: [filter definition] - (Optional) In a composed table data service, it is essential that data is segmented to be non-overlapping via filters and data layout. A given table location should not be served by multiple table data services in a group.
• tags: [list] - (Optional) Strings that are used to categorize this Table Data Service.
• description - (Optional) Text description of this Table Data Service. This text is displayed in user interface contexts.
• properties: - (Optional) Map of properties to be applied to this Table Data Service instance. See below.

Properties

The properties value specifies properties to be applied to this table data service instance.

Valid properties for LocalTableDataService instances include:

• tableLocationsRefreshMillis
• tableSizeRefreshMillis
• refreshThreadPoolSize
• allowLiveUserTables

Note: The following properties apply only to standalone uses of the LocalTableDataService:

• LocalTableDataService.tableLocationsRefreshMillis
• LocalTableDataService.tableSizeRefreshMillis=1000
• LocalTableDataService.refreshThreadPoolSize

Valid properties for RemoteTableDataService instances include:

• requestTimeoutMillis

Tags and descriptions

All Table Data Service configuration sections support tags and descriptions. Data Import Servers are implicitly Table Data Services, and tags and descriptions apply there as well.

This information is used to influence the user interface in several places.

In general:

• The [description] item provides explanatory text that can be displayed along with the name
• A [tag] provides one or more labels that can be used to categorize the tagged item.

The default tag identifies an item in a set to be used as the default selection.

Persistent query type "In-Worker Service"

When "In-Worker Service" is selected as the Configuration Type in the Persistent Query Configuration Editor, routing services may be available. These routing services are taken from this routing file, and are based on the subsection. For example, only DIS services can see the dataImportServers entries. Options here impact the in-worker service configuration panel.

If a configuration has a description, then that description will be displayed alongside the name in the routing service drop-down menu.

Note that:

• If a configuration has the tag default, that item will be selected by default for a new query of the appropriate type.
• Only for Data Import Server - any DIS configurations with the tag dis_script will be excluded from the panel's routing services list.
• Only for "Data Import Server with Script" - if any DIS configurations have the tag dis_script, then only DIS instances with that tag will be included in the drop-down list.

Persistent query type "Data Merge"

When "Data Merge" is selected as the Configuration Type in the Persistent Query Configuration Editor, the Merge Settings tab becomes available. This tab includes a drop-down list for Table Data Service Configuration.

Items in this list will show any configured descriptions. Note that:

• If any Table Data Service configurations have the tag merge, then only instances with that tag will be included in the drop-down list.
• If any Table Data Service configuration has the tag default, that item will be selected by default for a new query of this type.

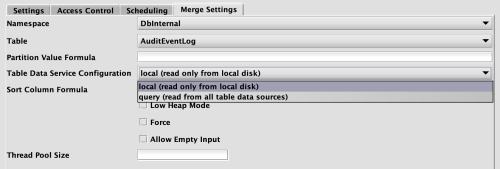

For example:

The default selection is local. Because local and query include the tag merge, they appear in the drop-down list below. The default selection is local:

Claims

Claiming a table

Claims provide a method for tailers and data readers to identify the DIS that is associated with a particular table. Claims are intended to simplify data routing configuration compared to filters.

In the YML data routing configuration file, claim a table or namespace for a DIS by adding claims to the configuration section for that DIS.

The tableName is optional in the claim. If omitted, or if the value is *, then all tables in the namespace are claimed. If given, only that single table is claimed.

Each DIS may claim multiple tables or namespaces. Any number of DISes may claim distinct tables or namespaces. A DIS that uses filters may not make claims and vice versa.

A DIS with claims handles only data for those claims. No other DIS (except in the same failover group) handles data for those claimed tables.

Multiple claims on the same table or namespace are not allowed (but see failover groups below).

Overriding claims

A claim may be made for a single table, or for an entire namespace. A single table claim overrides a namespace claim. All claims in the file are evaluated together, so the order is not meaningful.

In this example, dis_claims_kafka_t1 will be the source for Kafka.table1, and dis_claims_kafka will be the source for all other tables in the Kafka namespace.

Claims and filters

The notion of tables being claimed by specific DISes is enforced at a global level. This means that the claimed tables do not need additional exclusions in the configuration file, for purposes of determining tailer targets (to which DISes should this data be sent) and table data services (TDS) (from which DIS or service should this data be requested).

Claims have the following implications. Note that a DIS is implicitly also a table data service (TDS) as it both ingests data and serves it to other processes:

Data Import Servers:

• If a claim is made, the implicit DIS filter is "have I claimed this table?"
• If no claims are made, the DIS filter is "is the table unclaimed?" plus any filter specified.

When composing Table Data Services (sources tag):

• A failover group ([tds1, tds2]) is filtered with "is table unclaimed" + plus any filter given. Note that this ignores filters on the DISes themselves.
• A source named dataImportServers causes the section to be repeated for all applicable DISes (with or without filters).
• If a filter is not provided:
  • A named failover group is filtered with "is claimed by this group".
  • A named DIS is filtered with that DIS's filter, which will be an is-claimed or is-not-claimed filter.
  • Anything else is delegating to another TDS and will be filtered with "is table unclaimed".
• If a filter is provided, that filter will be used for the named source, overriding the implied claims filter.

Data filters

Filters specify which services apply to a given data location, or which locations apply to a given service. In the filters section, which may be used within many of the primary sections discussed above, a single filter may be defined, or an array of filters. A location will be accepted if any defined filter accepts it.

There are two ways to specify these filters: using Query Language or Attribute Values. The filter attributes for the two modes are mutually exclusive.

Query language filters

Filter attributes whereTableKey and whereLocationKey contain boolean clauses in the Deephaven query language. These clauses can define the following:

• NamespaceSet (String) - NamespaceSet is User or System, and divides tables and namespaces between User and System.
• Namespace (String)
• TableName (String)
• Online (Boolean) - Online tables are those that are expected to change, or tick. This includes system intraday tables and all user tables.
• Offline (Boolean) - Offline tables are those that are expected to be historical and unchanging. This is system data for past dates, and all user tables. Online and Offline categories both include user data, so Offline is not the same as !Online.
• InternalPartition (String)
• ColumnPartition (String) - whereLocationKey queries apply to the Location Key (InternalPartition and ColumnPartition) associated with a given Table Key.

If your sequence of filters relies on externally changing values such as the date, then you must provide a consistent view of those values for each routing decision. For the common case of currentDateNy(), you can use the alternative com.illumon.iris.db.v2.locations.CompositeTableDataServiceConsistencyMonitor.consistentDateNy() function. For arbitrary functions, you guard instances with the FunctionConsistencyMonitor defined in com.illumon.iris.db.v2.locations.CompositeTableDataServiceConsistencyMonitor.INSTANCE.

Examples

The following example filters to System namespaces except LASTBY_NAMESPACE, for the current date and the future:

The next example filters to the same tables, but for all dates before the current date:

Unlike the first two filters, the following example includes all locations for these tables:

Attribute Values filter

This type of filter allows you to stipulate specific values for the named attributes. Since multiple filters can be specified disjunctively, you can build an inclusive filter by specifying the parts you want included in separate filters.

The attributes for a filter are:

• namespaceSet - User or System.
• namespace - The table namespace must match this value.
• tableName - The table name must match this value.
• online - true or false. online: false means historical system data, or any user data. online: true means intraday system data, or any user data.
• class - This specifies a fully qualified class name which can be used to evaluate locations. This class must implement DataRoutingService.LocationFilter or DataRoutingService.TableFilter, or both (which is defined as DataRoutingService.Filter).

A filter may define zero or more of these fields. A value of "*" is the same as not specifying the attribute. A filter will accept a location if all specified fields match.

Examples

There are several ways to specify filters in the YAML format, as illustrated in the examples below. These examples are in the context of a tableDataService sources entry.

Inline map format:

Map elements on separate lines:

An array of filters. Each filter can be inline or on multiple lines:

An empty filter:

No filter (same as an empty filter)

YAML file validation tool

The Deephaven configuration tool, dhconfig can be used to validate data routing service configuration files before importing to a system. This will test for various common errors in the YAML file. Validation is also performed when importing a routing file. See dhconfig routing for more information.

Add --verbose to get more detail about any parsing errors.

Example Deephaven data routing configuration file

The following shows a sample template of a YAML configuration file for a three-node cluster, with a lastBy DIS (using dynamic endpoints) and shared System (historical) data.
