Deephaven VS Code - Panels

There are three panels in the Deephaven extension. They appear on the left side of the VS Code window below the activity bar.

Servers

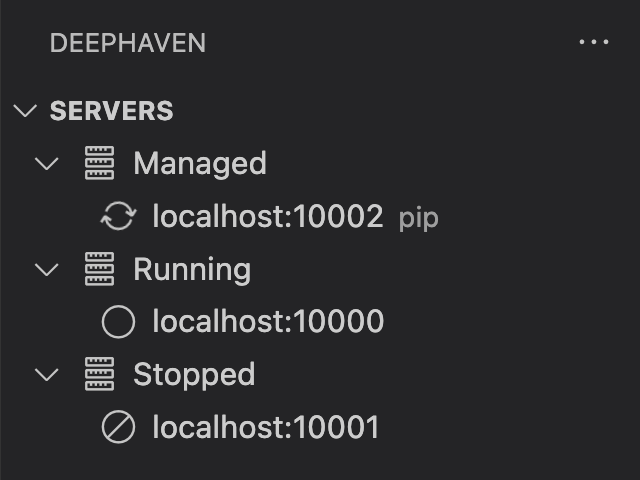

The SERVERS panel shows the status of all configured servers.

If the deephaven-server pip package is available in your local workspace, the panel will also show a "Managed" servers node (note that managed servers are Community servers that target the current VS Code workspace).

Interactive Consoles

The INTERACTIVE CONSOLES panel shows all active connections grouped under their server. Each worker node lists the editors currently associated with it, followed by associated files and the exported variables available on its session. Clicking a variable will open or refresh the respective output panel. Hovering over nodes will show additional contextual action icons.

Editors can be dragged from one active connection to another.

Creating a Worker

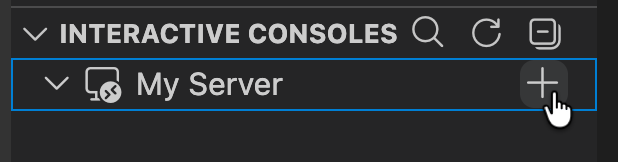

To start a new interactive console worker on an enterprise server, hover the server node in this panel and click the + (Create Worker) action.

Servers that support the query creation UI will present it so you can configure the worker. Grizzly servers do not, and use the experimentalWorkerConfig setting instead.

Disconnecting from a Worker

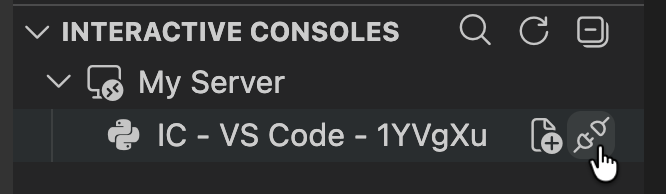

Hover a worker node and click the disconnect icon to disconnect from it. This action is only available on workers that were started from VS Code. Workers that were already running when you connected to the server are left running.

Persistent Queries

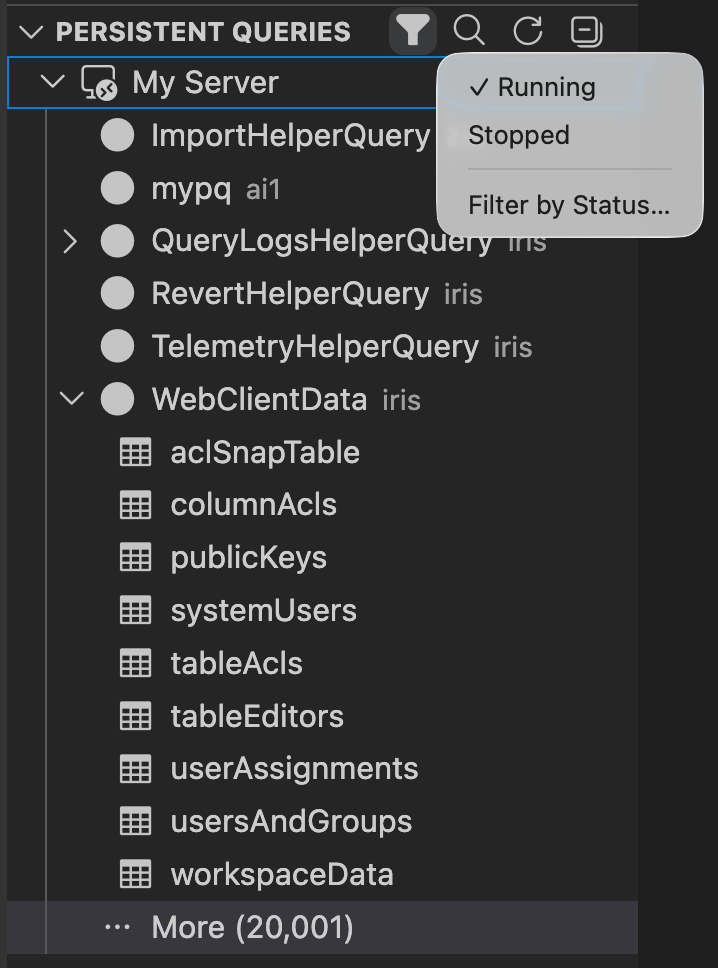

The PERSISTENT QUERIES panel shows the persistent queries visible to you on each connected enterprise server, listed beneath the server that owns them. Servers older than Grizzly+ cannot provide this list and are omitted from the panel entirely. Expanding a running query lists the objects it exports; clicking one opens it in a panel.

The filter icon in the panel title chooses which statuses are listed:

• Running covers queries that are running or starting up; Stopped covers those that have finished or are shutting down, plus queries reporting no status at all. By default Running is checked and Stopped is not.
• An entry is checked only while every status in its group is listed. Clicking a checked entry hides the whole group; clicking an unchecked one lists all of it.
• Filter by Status... opens a per-status checkbox list, with the number of queries currently in each status, for finer control.
