Generate tables with Python functions

This guide covers function-generated tables, which enable the creation of ticking tables via a Python function. The function is run when either:

One or more source tables tick.
A refresh interval is reached.

Usage pattern

Function-generated tables follow this basic usage pattern:

Define a Python function that returns a table.
Define one or more trigger tables or a refresh interval.
Create a function-generated table by calling function_generated_table.
- A function-generated table can use one or both of the following to trigger the function call:
  - A trigger table.
  - A refresh interval.

A function-generated table is designed to ingest data from external sources into ticking tables. The only requirement is that the Python function that ingests this data returns a table.

Table generator function

You can define your function in the normal Pythonic way. The only requirement is that the function must return a table.

Here's an example:

from deephaven import empty_table


def make_table():
    return empty_table(5).update(
        ["X = randomInt(0, 10)", "Y = randomDouble(-50.0, 50.0)"]
    )

Call `function_generated_table`

The following code block uses make_table as the table generator function. function_generated_table is called twice:

Once with a trigger table.
Once with a refresh interval.

from deephaven import time_table, empty_table
from deephaven import function_generated_table


def make_table():
    return empty_table(5).update(
        ["X = randomInt(0, 10)", "Y = randomDouble(-50.0, 50.0)"]
    )


tt = time_table("PT1S")

result_from_table = function_generated_table(
    table_generator=make_table, source_tables=tt
)

result_from_refresh_interval = function_generated_table(
    table_generator=make_table, refresh_interval_ms=2000
)

Weather data

The following example pulls weather from NOAA's free-to-use Weather API for the city of Denver, Colorado. The trigger table ticks once per minute.

from deephaven import function_generated_table
from deephaven import column as dhcol
from deephaven import time_table
from deephaven import new_table

from urllib.request import Request, urlopen
import json


def pull_denver_weather_data():
    req = Request("https://api.weather.gov/gridpoints/BOU/63,62/forecast/hourly")
    req.add_header("deephaven.io", "social@deephaven.io")
    content = json.loads(urlopen(req).read())
    weather = content["properties"]["periods"]
    n_weather = len(weather)
    times = [0] * n_weather
    temps = [0] * n_weather
    chances_of_rain = [0] * n_weather
    dewpoints = [0] * n_weather
    humidities = [0] * n_weather
    windspeeds = [0] * n_weather
    winddirs = [""] * n_weather
    forecasts = [""] * n_weather
    for idx in range(n_weather):
        temps[idx] = weather[idx]["temperature"]
        chances_of_rain[idx] = weather[idx]["probabilityOfPrecipitation"]["value"]
        dewpoints[idx] = weather[idx]["dewpoint"]["value"]
        humidities[idx] = weather[idx]["relativeHumidity"]["value"]
        windspeeds[idx] = int(weather[idx]["windSpeed"].split()[0])
        winddirs[idx] = weather[idx]["windDirection"]
        forecasts[idx] = weather[idx]["shortForecast"]
    return new_table(
        [
            dhcol.int_col("TempF", temps),
            dhcol.int_col("PctChanceRain", chances_of_rain),
            dhcol.double_col("DewPointC", dewpoints),
            dhcol.int_col("RelativeHumidity", humidities),
            dhcol.int_col("WindSpeedMPH", windspeeds),
            dhcol.string_col("WindDirection", winddirs),
            dhcol.string_col("ShortForecast", forecasts),
        ]
    )


tt = time_table("PT60s")

denver_weather = function_generated_table(
    table_generator=pull_denver_weather_data, source_tables=tt
)

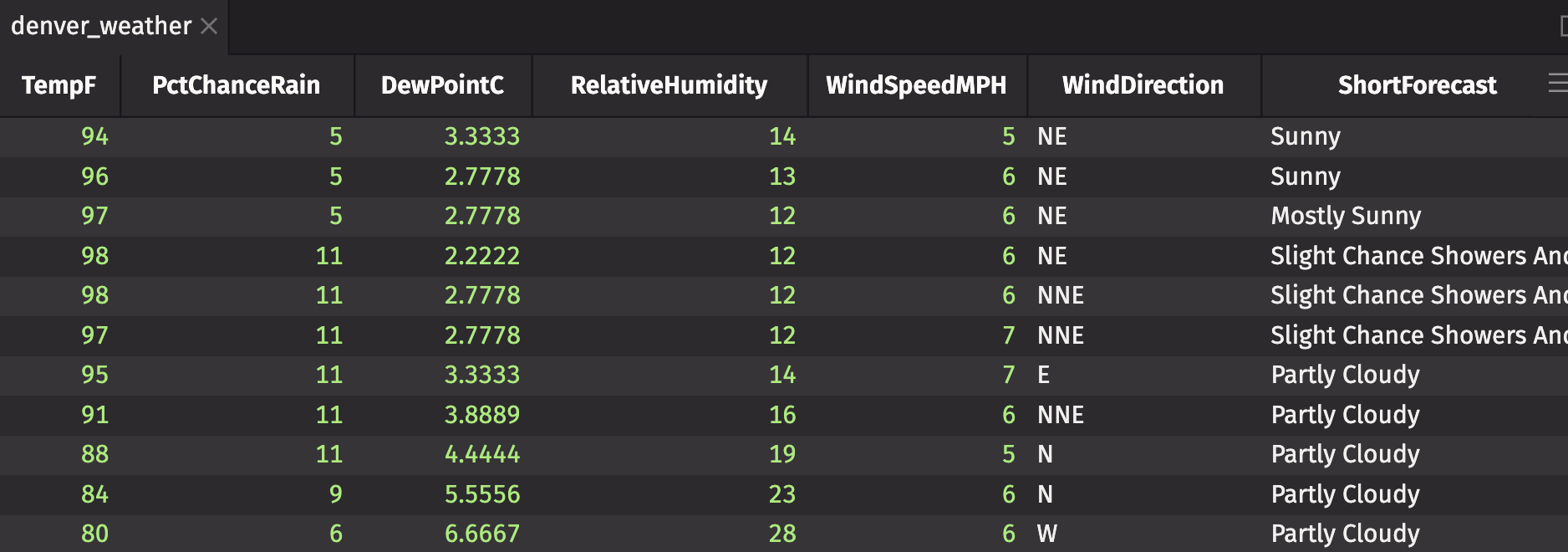

The above denver_weather table

Execution context

Function-generated tables require an execution context to run in. If you don't specify an execution context, the method will use the systemic execution context. The example above does not specify an execution context, so the systemic execution context is used.
