Deephaven process management

This document provides a comprehensive guide to managing Deephaven processes across all deployment types. It covers process supervision, startup and shutdown procedures, configuration, and monitoring.

For quick reference commands, see the Deephaven operations guide.

Deployment types

Deephaven process management varies by deployment type:

Deployment	Process supervision	Primary tools
Traditional (bare metal/VM)	monit + systemd	`dh_monit`, `iris`
Podman	monit (containerized)	`dh_monit`, `iris`
Kubernetes	Kubernetes controllers	`kubectl`, Helm

Deephaven services

A Deephaven deployment consists of multiple services, each running as a separate process:

Process name	Run user	Description
`configuration_server`	`irisadmin`	Provides configuration to other services
`authentication_server`	`irisadmin`	Handles user authentication
`iris_controller`	`irisadmin`	Manages Persistent Query lifecycle
`db_query_server`	`dbquery`	Dispatcher for query workers
`db_merge_server`	`dbmerge`	Dispatcher for merge workers
`web_api_service`	`dbquery`	Serves the Web IDE
`log_aggregator_service`	`irisadmin`	Aggregates binary log entries
`db_dis`	`dbmerge`	Data Import Server
`tailer1`	`irisadmin`	Streams data from binary logs
`db_tdcp`	`dbquery`	Table Data Cache Proxy
`db_ltds`	`dbquery`	Local Table Data Server
`db_acl_write_server`	`irisadmin`	ACL Write Server

Process dependencies

Services must start in a specific order due to dependencies:

etcd (no dependencies)
  └── configuration_server
        └── authentication_server
              └── All other services

The dh_monit wrapper automatically handles this sequencing.

System users

Deephaven processes run under specific system users for security and access control:

User	Purpose	Default name
Admin user	Infrastructure services, administration	`irisadmin`
Query user	Query workers, web services	`dbquery`
Merge user	Merge workers, data import	`dbmerge`
Monit user	Process supervision daemon	`irisadmin`
etcd user	etcd database	`etcd`

You can override these defaults in cluster.cnf. See Cluster configuration files for details.

Traditional and Podman deployments

Process supervision architecture

Traditional and Podman deployments both use monit for process supervision, but differ in how monit itself is managed:

Traditional deployments (bare metal/VM):

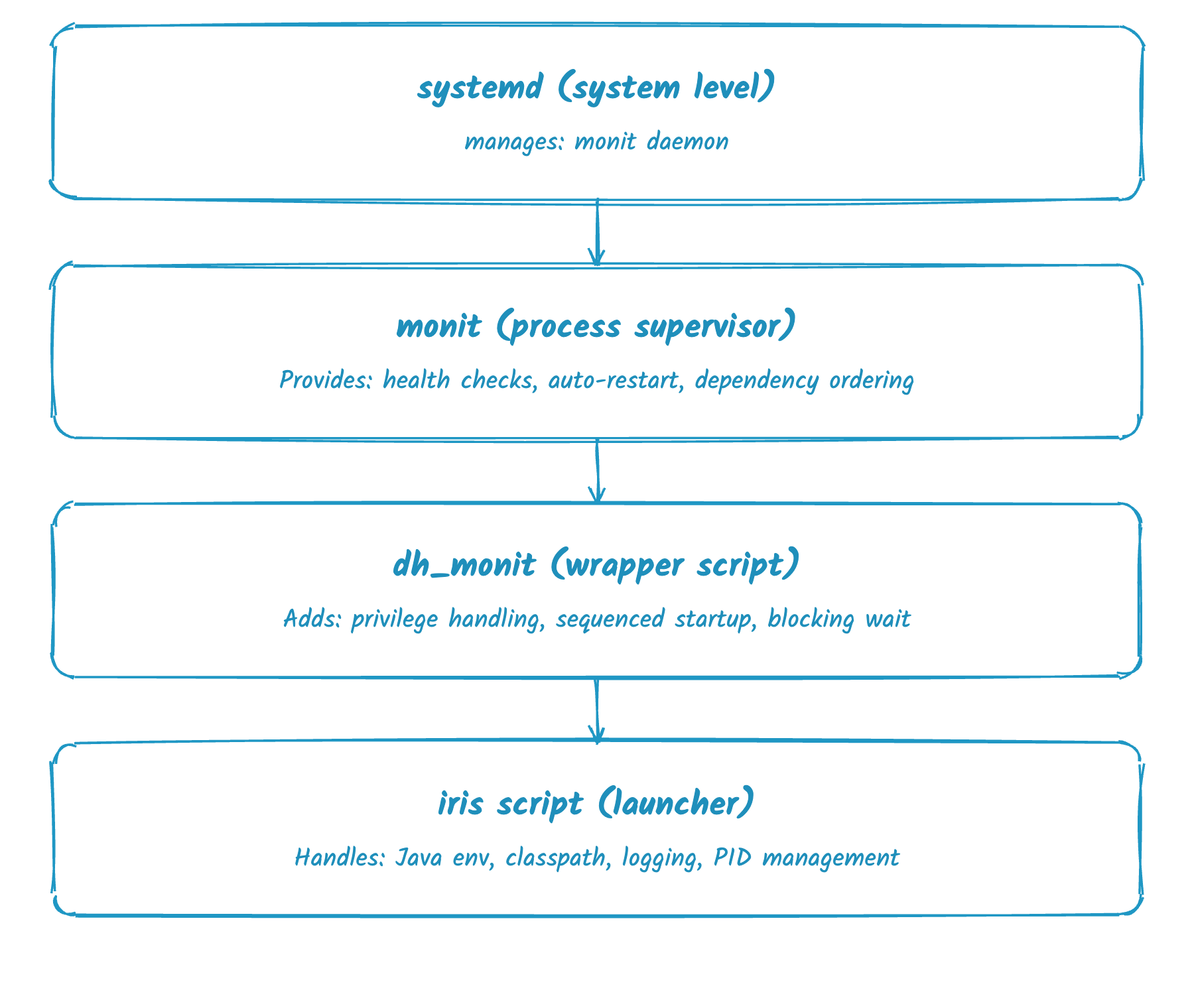

Process supervision architecture

In traditional deployments, systemd manages the monit daemon. Use systemctl commands to start, stop, or check monit status.

Podman deployments:

In Podman deployments, the container entrypoint script starts monit directly — systemd is not involved. Do not use systemctl commands for monit management in Podman; instead, manage the container itself via podman commands.

The `dh_monit` wrapper

Deephaven provides dh_monit as a wrapper around monit that adds Deephaven-specific functionality:

Privilege handling — Runs commands as the appropriate user without requiring root.
Sequenced startup — Starts configuration_server and authentication_server first, waiting for each to be ready before continuing.
Blocking waits — Optionally waits for all services to reach their target state.

Basic commands

# View status of all services
dh_monit summary

# View detailed status
dh_monit status

# Check specific service
dh_monit status configuration_server

Starting and stopping services

# Start all services with proper sequencing
dh_monit up

# Stop all services
dh_monit down

# Start/stop with blocking (wait for completion)
dh_monit up --block
dh_monit down --block

# Start/stop individual services
dh_monit start configuration_server
dh_monit stop authentication_server

# Restart a service
dh_monit restart iris_controller

# Start/stop all without sequencing
dh_monit start all
dh_monit stop all

Monitoring and unmonitoring

# Stop supervising a service (process keeps running)
dh_monit unmonitor configuration_server

# Resume supervision
dh_monit monitor configuration_server

# Report running vs. total processes
dh_monit report

The `iris` script

The iris script is the actual process launcher invoked by monit. It handles:

Java environment setup (JAVA_HOME, JAVA_FLAGS)
Classpath construction
Workspace and log directory creation
Process user switching via sudo
PID file management

For advanced troubleshooting, you can invoke it directly:

# Start a service with debug output
/usr/illumon/latest/bin/iris --debug start iris_controller

# Stop a service
/usr/illumon/latest/bin/iris stop iris_controller

Configuration files

monit configuration

Location	Purpose
`/etc/monitrc`	Main monit configuration (override via `DH_MONIT_RC`)
`/etc/sysconfig/illumon.d/monit/*.conf`	Per-service configuration

Example service configuration (/etc/sysconfig/illumon.d/monit/configuration_server.conf):

check process configuration_server with pidfile /etc/deephaven/run/configuration_server.pid
    start program = "/usr/illumon/latest/bin/iris start configuration_server"
    stop program  = "/usr/illumon/latest/bin/iris stop configuration_server"

Host configuration

Process launch parameters are configured in hostconfig files:

Location	Purpose
`/etc/sysconfig/illumon.confs/hostconfig.system`	System defaults (installer-managed)
`/etc/sysconfig/illumon`	Custom overrides

See Java process launch configuration for details.

Enabling and disabling services

Temporarily disable

dh_monit stop configuration_server
dh_monit unmonitor configuration_server

Permanently disable

cd /etc/sysconfig/illumon.d/monit
mv configuration_server.conf configuration_server.conf.disabled
dh_monit reload

Re-enable

cd /etc/sysconfig/illumon.d/monit
mv configuration_server.conf.disabled configuration_server.conf
dh_monit reload
dh_monit start configuration_server

Kubernetes deployments

In Kubernetes, process management is handled by Kubernetes itself rather than monit.

Pod-based architecture

Deephaven services run as Kubernetes deployments and StatefulSets:

Resource type	Services
Deployments	configuration-server, authserver, controller, query-server, merge-server, webapi, dis, las
StatefulSet	etcd cluster
Dynamic pods	Worker pods (created by dispatchers)

Managing services

Check status

# List all pods
kubectl get pods -n <namespace>

# Check specific deployment
kubectl get deployment configuration-server -n <namespace>

# Describe a pod for events and details
kubectl describe pod <pod-name> -n <namespace>

Restart services

# Restart a deployment (rolling restart)
kubectl rollout restart deployment/configuration-server -n <namespace>

# Check rollout status
kubectl rollout status deployment/configuration-server -n <namespace>

View logs

# View logs for a pod
kubectl logs <pod-name> -n <namespace>

# Follow logs in real-time
kubectl logs -f <pod-name> -n <namespace>

# View logs for a deployment
kubectl logs deployment/configuration-server -n <namespace>

Scale services

# Scale query servers
kubectl scale deployment/query-server --replicas=3 -n <namespace>

Configuration

Kubernetes deployments are configured through Helm values rather than file system access:

# my-values.yaml
process:
  controller:
    jvmArgsMemory: "-XX:+UseContainerSupport -XX:MaxRAMPercentage=70"

resources:
  query-server:
    requests:
      cpu: 2
      memory: 8Gi
    limits:
      memory: 16Gi

Apply configuration:

helm upgrade <release-name> deephaven/deephaven -f my-values.yaml -n <namespace>

See Kubernetes process launch configuration for details.

Monitoring process status

Traditional/Podman

# Quick status overview
dh_monit summary

# Detailed status with uptime
dh_monit status

# Watch status in real-time
watch dh_monit summary

# Check monit logs
tail -f /var/log/deephaven/monit/monit.log

Kubernetes

# Pod status
kubectl get pods -n <namespace>

# Resource usage
kubectl top pods -n <namespace>

# Pod events
kubectl get events -n <namespace> --sort-by='.lastTimestamp'

Troubleshooting

Stale PID files

After an improper shutdown, stale PID files may prevent services from starting:

# Remove stale PID files
rm -f /etc/deephaven/run/*.pid

# Or add to crontab for automatic cleanup on reboot
sudo crontab -e
# Add: @reboot rm -f /etc/deephaven/run/*.pid

Interactive debugging

For services that fail to start, bypass monit for interactive debugging:

# Switch to the appropriate user
sudo su - irisadmin

# Start with debug output
/usr/illumon/latest/bin/iris --debug start iris_controller

Monit won't start

If monit fails to start after an improper shutdown:

Traditional deployments:

# Remove stale monit PID file
rm -f ~irisadmin/.monit.pid

# Restart monit
sudo systemctl restart monit

Podman deployments:

Restart the container to restart monit. The container entrypoint automatically cleans stale PID files on startup.

Common issues

Symptom	Likely cause	Solution
Service cycles between "Initializing" and "Execution failed"	Dependency not running	Check `configuration_server` and `authentication_server`
"Address already in use"	Port conflict	Find conflicting process: `lsof -i :<port>`
"Permission denied"	Wrong user or permissions	Verify file ownership and run user
Services won't start after reboot	Stale PID files	Remove `/etc/deephaven/run/*.pid`

See Process startup troubleshooting for more details.

Startup / Shutdown of Deephaven processes — Quick reference
Java process launch configuration — Traditional deployments
Kubernetes process launch configuration — Kubernetes deployments
Process startup troubleshooting
Process restart guide — Maintenance recommendations
monit runbook — Detailed monit reference
