Build and run Deephaven from source code

This guide shows you how to build and launch Deephaven Community Core from source code. It provides a starting point for tinkerers and developers who want to dig into configuration or experiment with code changes.

Supported operating systems

You can build and run Deephaven from source only on the following operating systems:

• Linux
• macOS
• Windows 10 build 20262 or higher, or Windows 11, through Windows Subsystem for Linux 2 (WSL 2)

On Windows, run every command in this guide inside a WSL 2 terminal.

Prerequisites

Before you build Deephaven from source, install the following software. Deephaven builds with Gradle, but you don't need to install it. The repository includes the Gradle Wrapper, a gradlew script that downloads and runs the correct version of Gradle automatically.

Java

You must install a JDK (Java Development Kit) version 21, not just a JRE (Java Runtime Environment). The JDK includes the Java compiler and other tools the build needs. Your JDK 21 runs the Gradle build, and Gradle does not download it for you.

To compile, test, and run Deephaven, Gradle uses toolchain auto-provisioning to download any other Java version it needs, so JDK 21 is the only Java version you install.

You can check that a JDK 21 is installed with:

Docker

Building Deephaven from source requires Docker version 20.10.8 or later. The Gradle build runs some steps in Docker, such as generating the server's gRPC code, packaging the web UI, and building the Python server package. Start the Docker daemon before you run the ./gradlew commands in this guide. On Windows, enable Docker's WSL 2 integration.

You can check your Docker version with:

Python

Deephaven requires Python 3.9 or later. See the version matrix for the Python versions each release supports. You can check your Python version with:

Version control

We recommend using a version control system to clone the deephaven-core repository. The most popular option is Git, and this guide uses it to clone the repository.

You can download a ZIP file of the repository from GitHub instead, but we don't recommend it, because a ZIP download is harder to keep up to date.

Build and run Deephaven

The following steps condense the build instructions in the deephaven-core repository. For the full instructions with explanations of configuration parameters, SSL, and more, see the Jetty server README.

Clone the deephaven-core repository

Once you've installed the prerequisites, clone the deephaven-core repository with Git:

Then, cd into your cloned repository:

You can verify the Gradle Wrapper is present:

Set up the Python virtual environment

Next, from the repository root, create and activate a Python virtual environment.

Build and install the wheel

Then, build the Deephaven server's Python package, called a wheel, and install it into the virtual environment. The [autocomplete] suffix installs optional dependencies that add code autocompletion in the IDE.

Start the server

Lastly, start the Deephaven server from a shell where the virtual environment is active. The server runs Python from that environment, so in a new shell, run source ~/my-dh-venv/bin/activate first.

The first build can take several minutes. The command keeps running in the foreground for as long as the server is up. When the log shows Server started on port 10000, the server is ready. To stop it, press Ctrl + C in the terminal where the server is running.

Open the Deephaven IDE

Once Deephaven is running, open the Deephaven IDE in your web browser. The IDE lets you analyze data interactively and develop new analytics.

• If Deephaven is running locally, navigate to http://localhost:10000/ide/.
• If Deephaven is running remotely, navigate to http://<hostname>:10000/ide/, where <hostname> is the address of the machine Deephaven is running on.

The IDE asks for a pre-shared key before it opens. To skip this prompt, open the URL that the server log prints after Connect automatically to Web UI with, which already includes the key. See Authentication to find the key and the URL.

Authentication

By default, Deephaven uses pre-shared key authentication. If you don't set a key, Deephaven generates a random key each time it starts and prints it to the server log in the terminal where you ran ./gradlew server-jetty-app:run, like this:

To set your own pre-shared key, stop the server and start it again with -Ppsk=YOUR_PASSWORD_HERE:

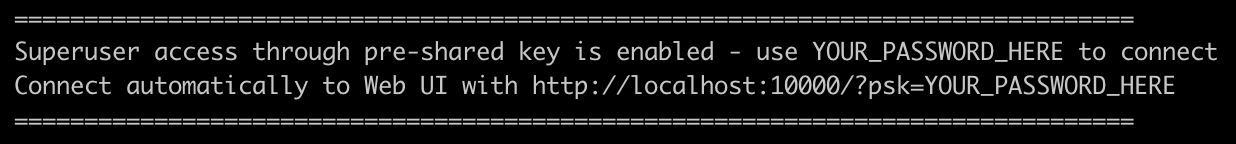

Deephaven prints your key to the server log like this:

Rebuild after changing Python code

If you change the Python server code, stop the server, then rebuild the wheel and reinstall it:

The rebuilt wheel has the same version number as the installed one. Without --force-reinstall, pip treats the package as already installed and skips it.

Then start the server again with ./gradlew server-jetty-app:run.

If you change Python code often, see the editable-install instructions in the Python development README.

If you change only Java code, you don't need to rebuild the wheel. Stop the server and run ./gradlew server-jetty-app:run again. Gradle recompiles the changed code before it starts the server.
